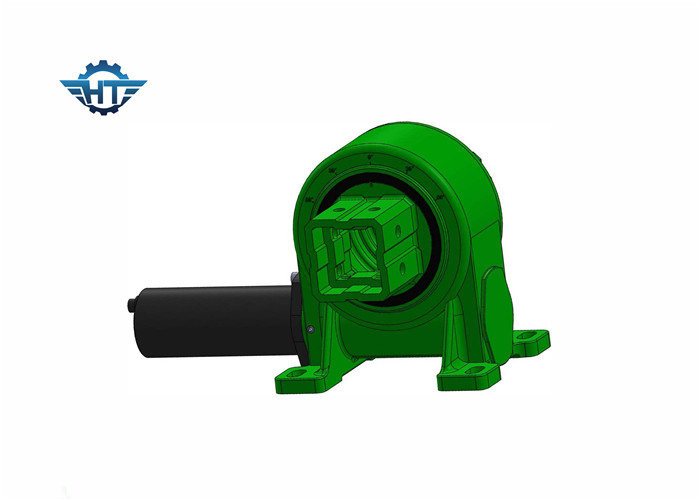

Enclosed Worm Gear Slew Drive With Squre Tube Output For Solar Tracking System

  • 1
  • 2

Brand Name : HangTuo

Model Number : VE9"

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD 330~450/ pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 15~45 days

Packaging Details : plywood box

Material : 50Mn, 42CrMo

Model : VE9"

Gear Ratio : 61:1

Rated Torque : 4300 Nm

Holding Torque : 27200 Nm

Tilting Torque : 16000 Nm

Efficiency : 40%

Output : Flange

Contact Now

Enclosed Worm Gear Slew Drive With Squre Tube Output For Solar Tracking System

Worm Gear Slew Drive​ Description

Slewing drives' rotating modules are compact rotational units integrated in a cast iron housing that contains a turning ring with a gear. The gear rotates the turning ring with great precision and allows for smooth rotation and maximum effort. Vertical type slewing drives offers vertical mounting and a fully-enclosed drive in one high-powered unit. It's a essential machinery transmission parts.Enclosed Worm Gear Slew Drive With Squre Tube Output For Solar Tracking System

We are manufactured based on the standard which is required in the ISO9001 system. We also passed CE certifications. The slew drive has a long lifespan and it is designed for 30 years field using life time.

VE Model Performance Parameters

VE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (kN.m) Tilting Torque (kN.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency

Precision

(Degree)

 IP Working Tep(℃) Self-locking Weight(kg)
3" 806 9 5 22 15 31:1 40% ≤0.15 66 -40～+80 Yes 12kg
5" 962 30 6 16 27 37:1 40% ≤0.15 66 -40～+80 Yes 18kg
7" 7344 60 10 34 58 51:1 40% ≤0.15 66 -40～+80 Yes 32kg
8" 8000 70 14 50 80 50:1 40% ≤0.15 66 -40～+80 Yes 28kg
9" 8784 80 16 60 130 61:1 40% ≤0.15 66 -40～+80 Yes 52kg
12" 11232 100 25 77 190 78:1 40% ≤0.15 66 -40～+80 Yes 65kg
14" 12240 120 48 110 230 85:1 40% ≤0.15 66 -40～+80 Yes 88 kg
17" 14688 136 67 142 390 102:1 40% ≤0.15 66 -40～+80 Yes 135 kg
21" 18000 140 89 337 640 125:1 40% ≤0.15 66 -40～+80 Yes 192 kg
25" 21600 150 112 476 950 150:1 40% ≤0.15 66 -40～+80 Yes 251 kg

Advantages

1. High backholding torque

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function

5. Flange output
